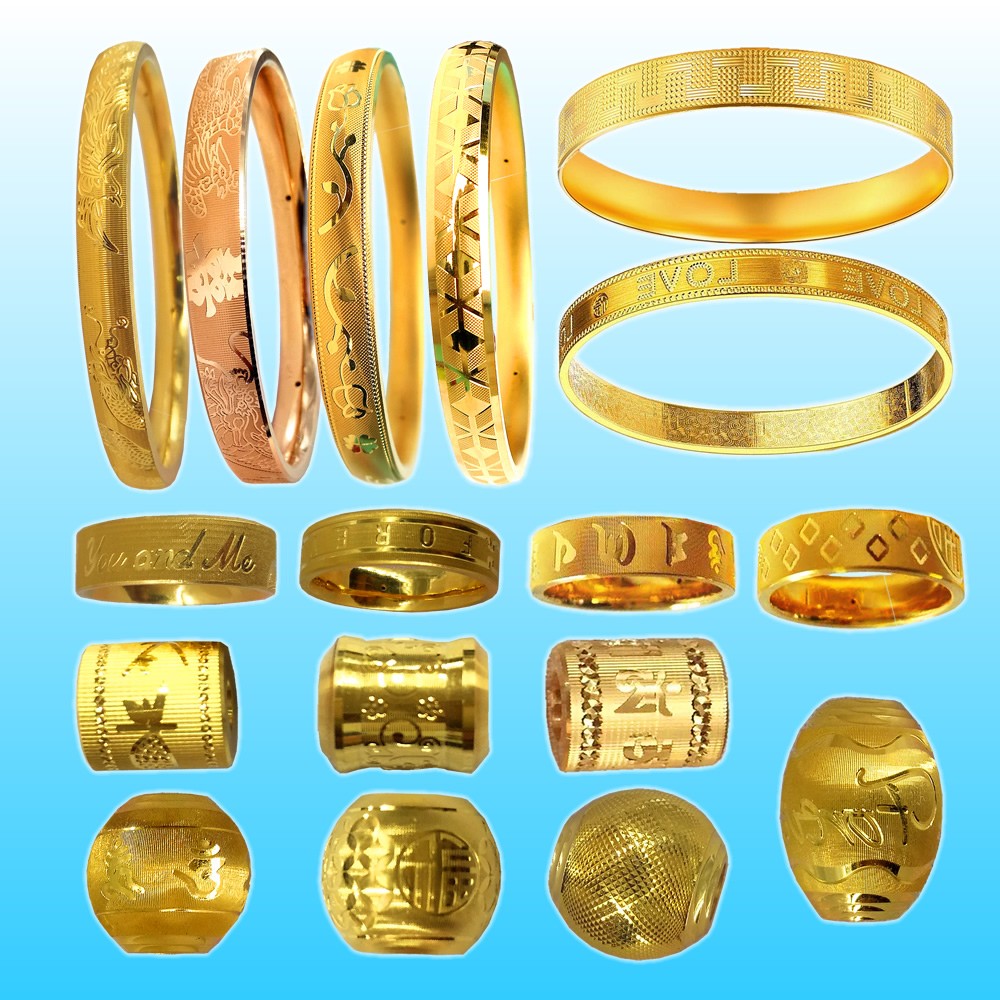

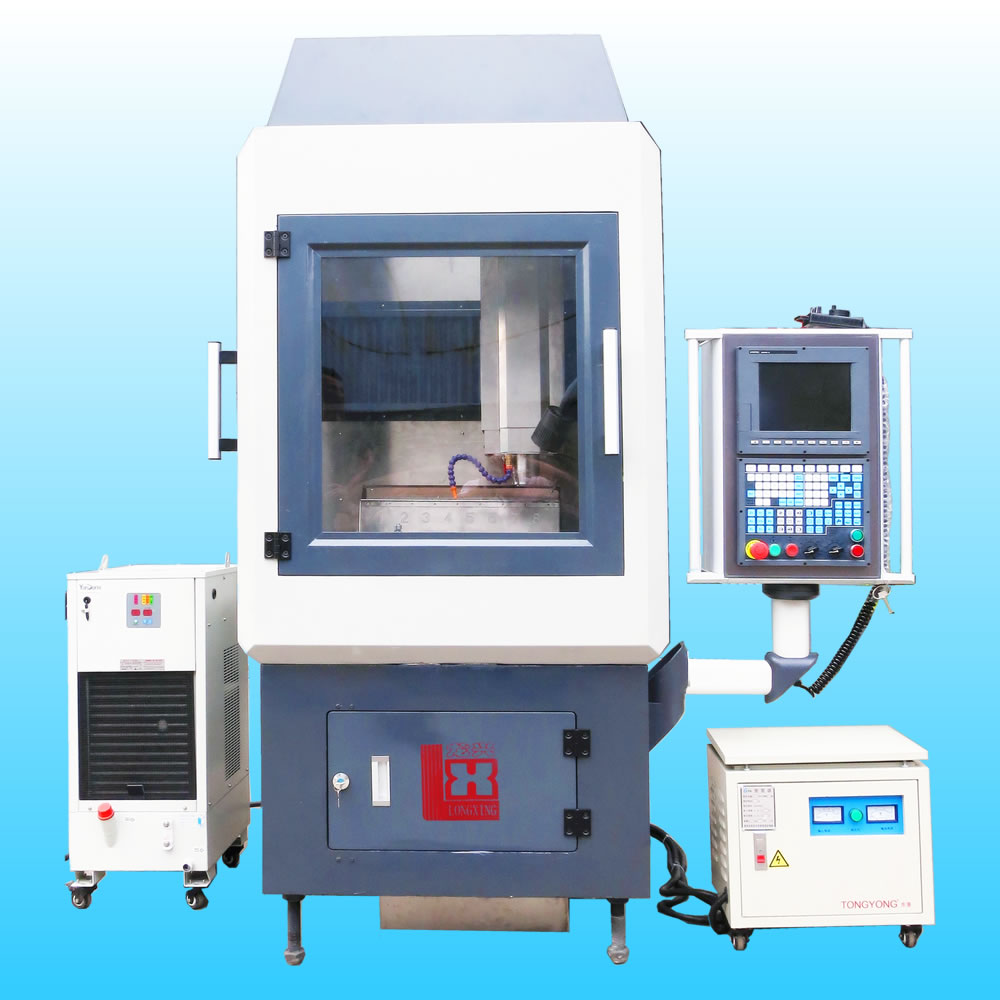

This machine can carve and engrave the complicated designs for gold and silver. It adopts Germany precise lead screw track, Japanese Kabushiki-gaisha Yasukawa Denki electric motor and other high quality accessories, so its performance is superior, stable and fast speed. 8, 12 and 16 tool-house are optional for this machine, and it applies to different products' requirements.

Technical Parameters

Voltage         : 380V

Spindle Power       : 2.8KW

Transmission Speed     : 40000r/min

Processing Route      : X/500mm Y/350mm  Z/300mm

Tool Spec       : ISO20

Collet Spec       : ER-16

Repeat Position Accuracy     :    ±0.005mm

Tool-house quantity      : 8/12/16(Optional)

Machine Size      : 1200x1400x2050mm

Machine weight     : 1500KG
