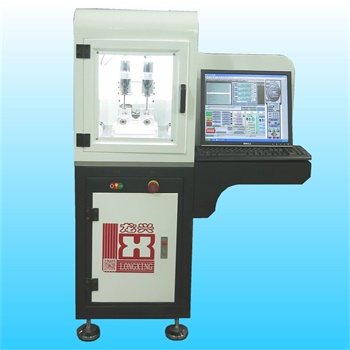

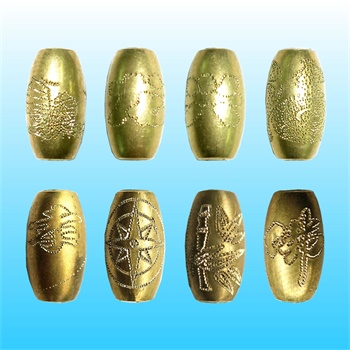

This machine is Ultrasonic & numerical control.It is special for making different designs by dotting on cambered surface product like round beads,olive beads,cylinder beads etc.There are two heads on this machine so that it can work for two beads at the same time, and it improves the working efficiency, Its working principle is drawing in the software and turning the drawing to G code(Machine language).
Voltage : 220V
Working efficiency :Up to the design (Round beads, Olive beads, Cylinder beads)
Workpiece Dimension :Ø3.0-Ø30mm×35(length)mm
Run command :G code HPGL, NC format
Repeat positioning accuracy :≦ 0.02 mm
Total Power : 2.5KW
Machine Size : 900×520×1380mm
Machine Weight : 138kg
Operation mode :Computer
