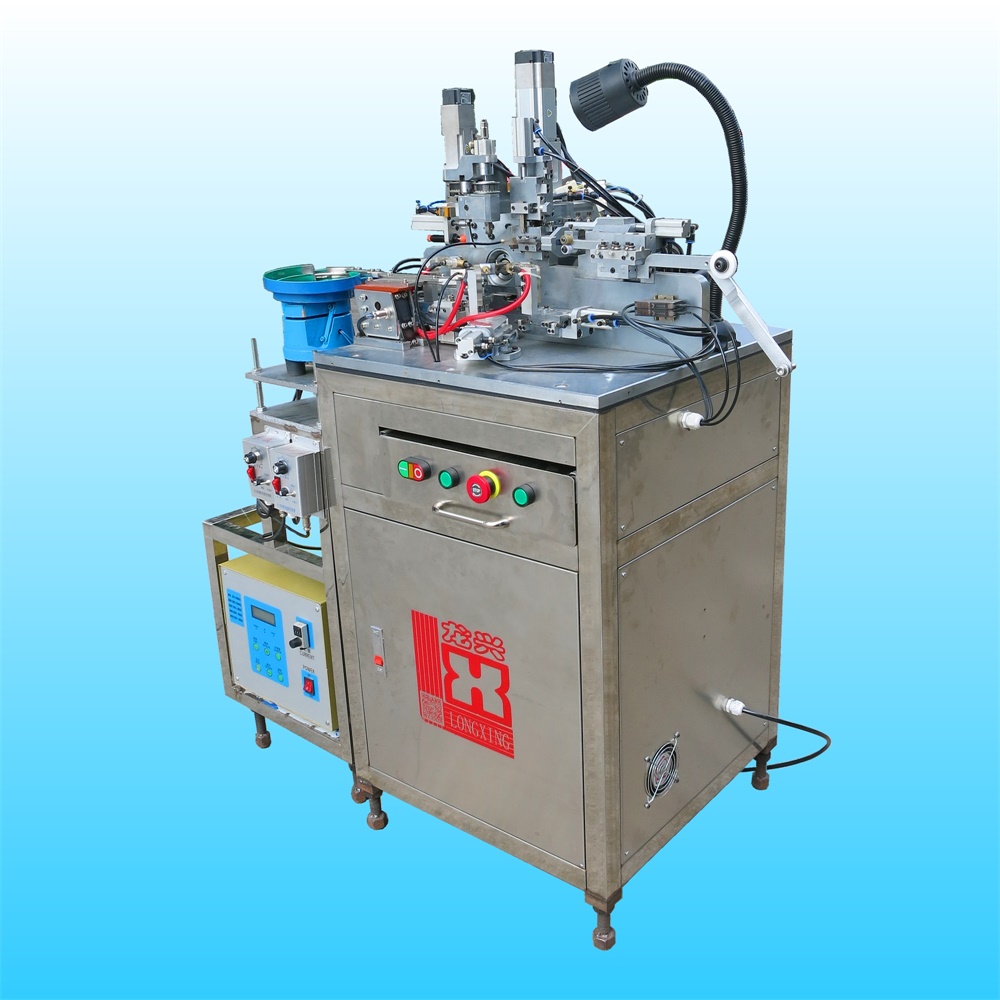

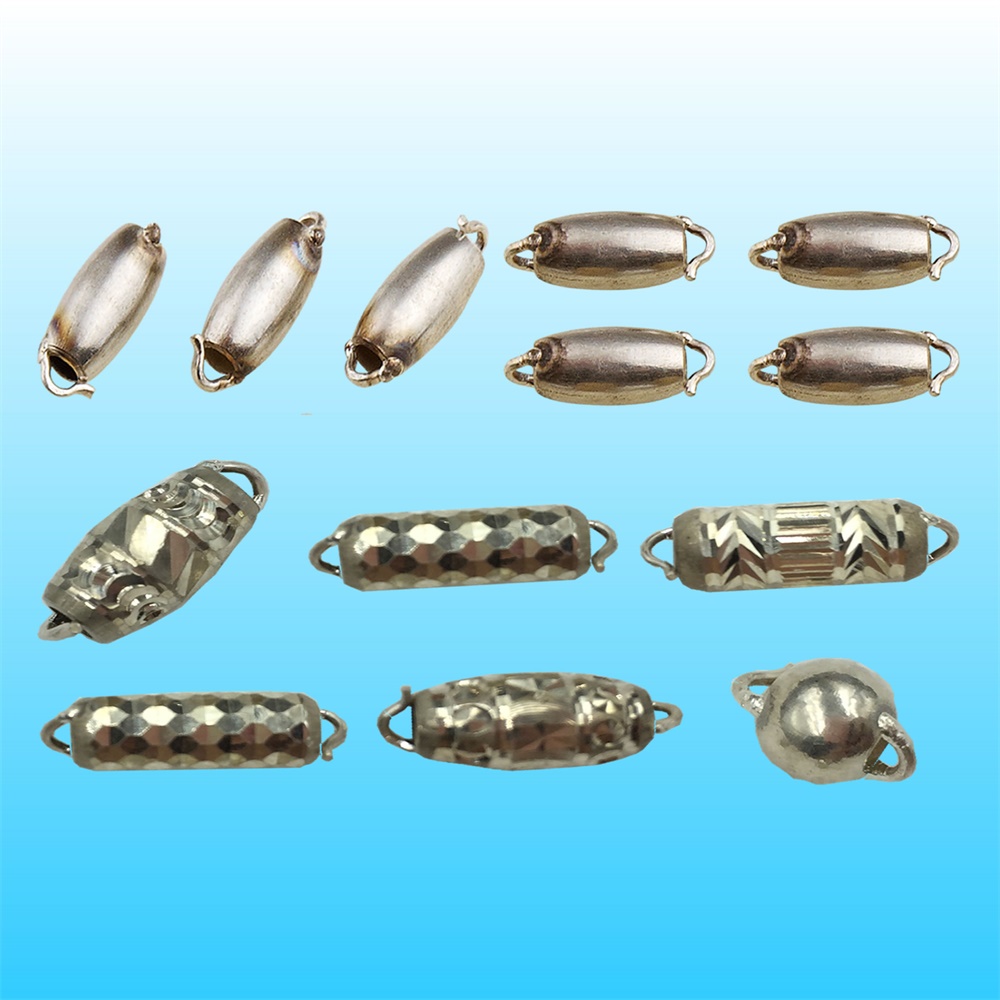

The machine can solder links for round beads, olive beads, cylinder beads and hexagon pipes, etc and sizes from Ø3.0 to Ø8.0mm. This machine has sensor to stop without materials. Compared with hand soldering, its efficiency is very high.
Technical Parameters
Voltage ：220 V
Total Power ：2.5 kw
Workpiece Diameter（Beads） : Ø3.0-Ø8.0mm
Workpiece Diameter （Wire）: Ø0.2-Ø0.8mm
Processing Efficiency ：8-10 pcs/min
Machine Size ：LWH 700×550×1400 mm
Machine Weight ：200 kg
Air Pressur ：5-6kg
Operation mode ：Touch screen
