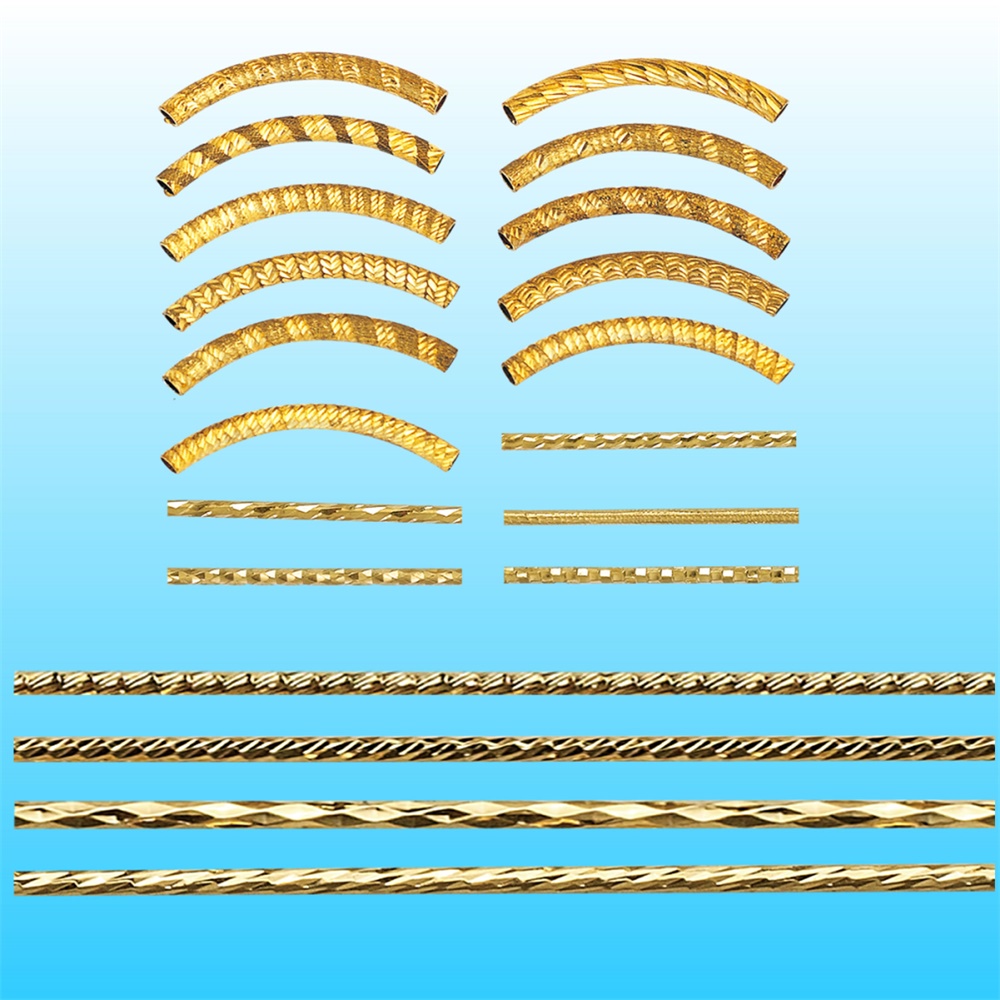

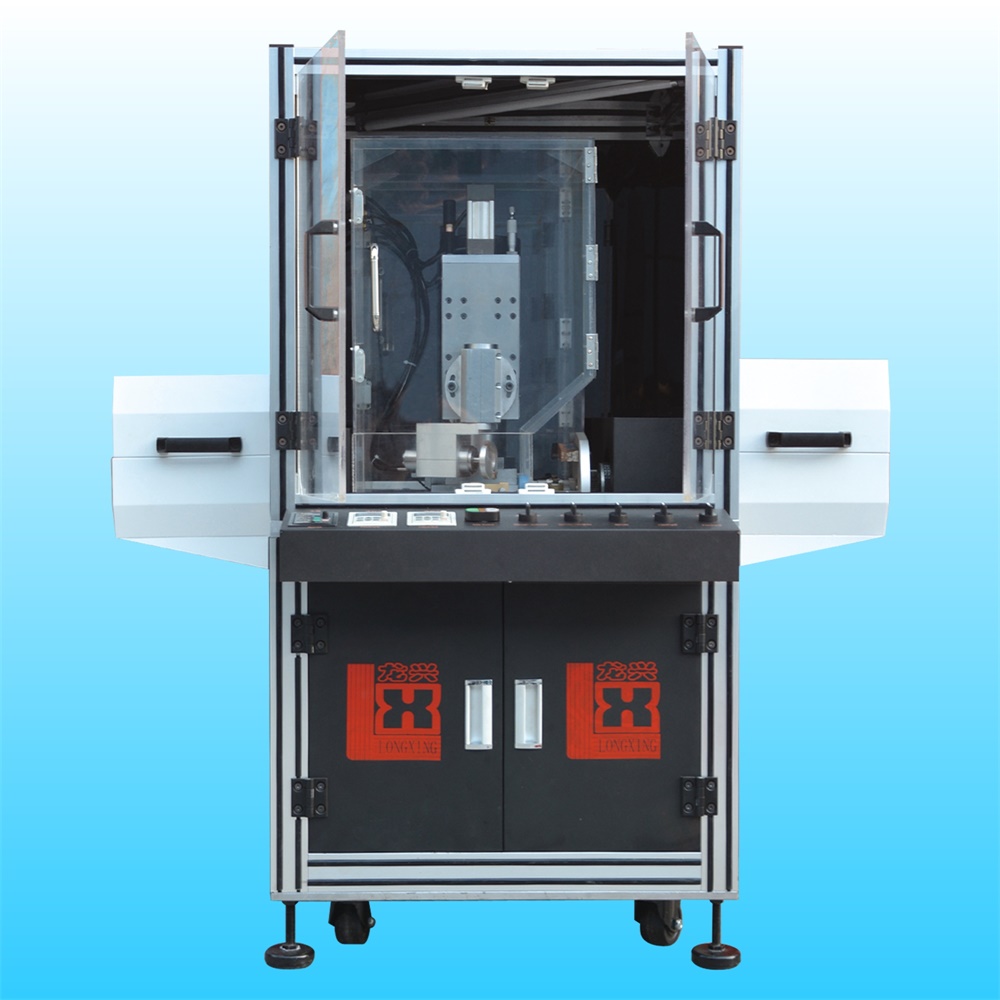

This machine can engrave round wires and tubes with patters of fish-scale, nail,crossing, etc. It can work on silver, copper, aluminum wire between Ø0.3-Ø1.0mm, and tube between Ø1.0-Ø4.0mm. It can automatically straighten the whole roll of wire.
Technical Parameters
Voltage : 220 V
Workpiece Dimension （Wire） ：Ø0.3-Ø1.0mm
Workpiece Dimension （Pipe） ：Ø1-Ø4mm
Processing Efficiency ：500—1000 mm/min
Max. Transmission Speed ：24000r/min
Total Power ：1.8kw
Max.Diameter of Milling Face ：3-4/kg
Machine Size ：1280x700x1450mm
Machine Weight ：150kg
